VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in West Palm Beach, FL | Lightwell Windows West Palm Beach

The VLX 100 Swing / Entry Door is a modern aluminum entry system built around two ideas: a slim profile that maximizes glass, and a multi-point lock that actually secures the opening. We install this door across West Palm Beach, from El Cid to Flamingo Park, and it’s become one of our most requested products for homeowners replacing dated wood or hollow-core entries. The frame is just over two and a half inches wide. That’s thinner than most competitors, which means more daylight and cleaner sightlines. Lightwell Windows West Palm Beach is an authorized ViewLux installation partner, so the product and the installation carry the same warranty umbrella. Call (728) 203-1160 for a free on-site measurement and a written quote.

Call (728) 203-1160

Product Overview – VLX 100 Swing / Entry Door

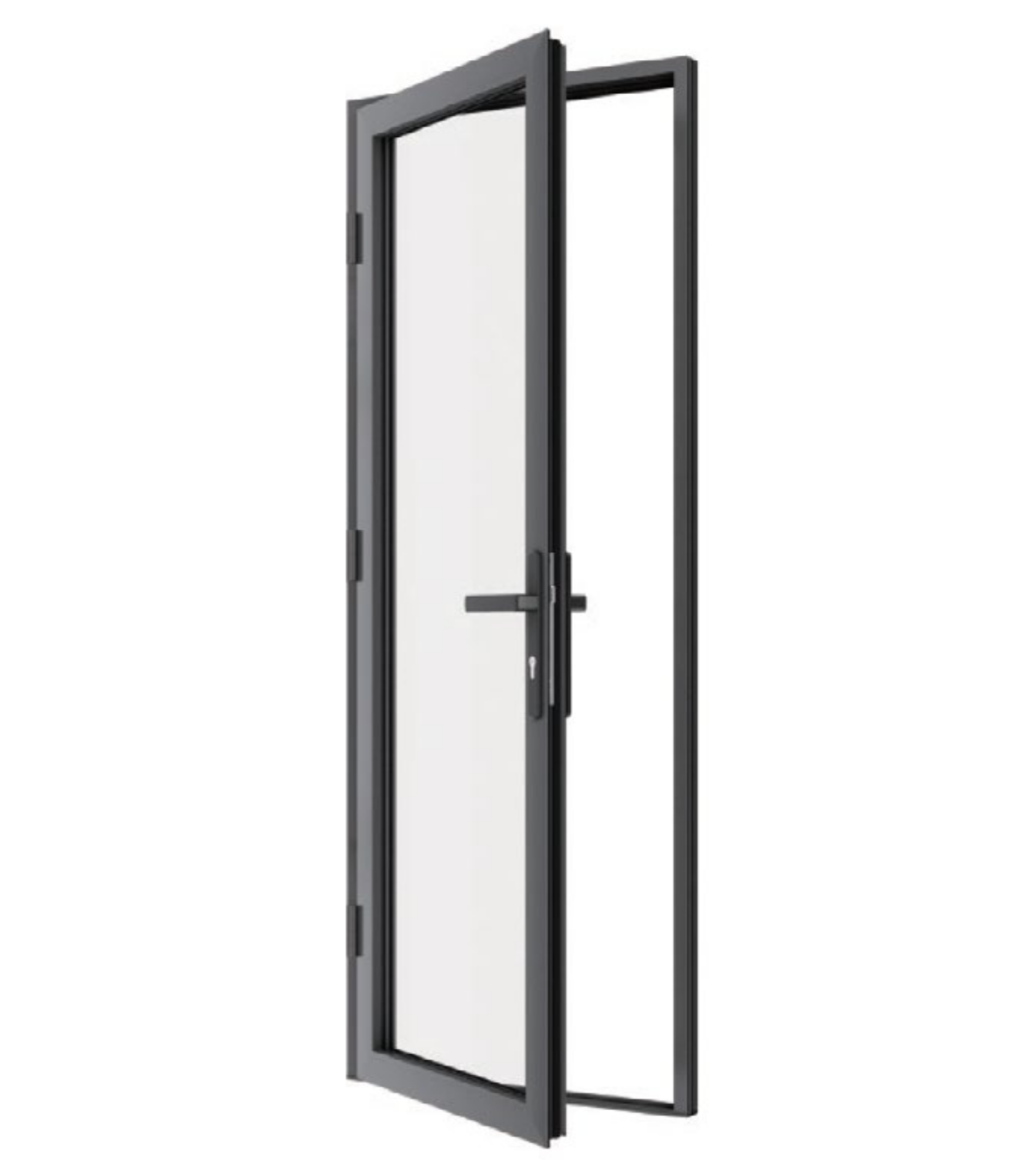

The VLX 100 is a single-leaf swing door with a minimalist aluminum frame and multi-point locking hardware. It’s the entry-level model in the VLX series, but the word “entry-level” undersells it. The engineering is the same platform used in the larger pivot and sliding units. What changes is the size and hardware configuration.

The design philosophy is straightforward: remove everything that doesn’t need to be there. The frame profile measures 2.56 inches, which reads as a thin black line against the stucco and plaster walls common in West Palm Beach’s 1950s ranches and new-build contemporaries alike. The wall thickness is 0.098 inches, which gives the extrusion enough structural mass to stay square over decades of Florida humidity cycles without looking bulky.

Architecturally, this door fits three scenarios well. First, mid-century modern homes in neighborhoods like Sunshine Park or Southland Park where original aluminum frames were the standard. Second, new construction where builders want a clean European look without importing product and dealing with overseas lead times. Third, replacements on stucco homes where a narrower frame means less stucco patching and a faster install.

The multi-point locking system engages at three points along the jamb, not just the single latch typical of residential doors. That spreads the locking force across the frame and keeps the door sealed against air infiltration at the top and bottom corners, where most entry doors leak. For West Palm Beach homeowners dealing with summer rain driven by southeast winds, that corner seal matters.

Technical Specifications

Here’s the VLX 100 at a glance. These are the numbers that matter when you’re comparing products.

• Wall thickness: 0.098-inch aluminum extrusion
• Profile width: 2.56 inches
• Maximum span: up to 48 inches wide per panel
• Glass types: Clear, Frosted, Obscure, Low-E, Tempered, Laminated (impact-rated available)
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or no screen
• Thermal rating: NFRC-rated with thermal break technology
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 foam sealant on all perimeter joints
• Locking: Multi-point, three-engagement hardware

Lead times vary by finish and glass selection. Custom powder-coat colors and laminated impact glass add the most time. Standard black or white with clear Low-E typically ships fastest. We give you a written lead-time estimate before you sign anything.

Performance Features

Thermal Efficiency – The VLX 100 uses a thermal break separating the exterior and interior aluminum faces. Without it, an aluminum door in a West Palm Beach afternoon sun becomes a radiator. With it, the frame stays closer to room temperature and the NFRC-rated performance holds up against FPL bills in July and August.

Acoustic Performance – The multi-point lock compresses the door slab against full-perimeter weatherstripping, which reduces the gaps that let sound through. For homes on Dixie Highway or near the Brightline tracks, laminated glass is the meaningful upgrade. The laminate interlayer cuts mid-range noise noticeably compared to standard tempered glass.

Airtightness & Weather Seal – AAMA 2400/2410 is the installation standard we build to on every job. That means the rough opening gets sealed correctly before the frame goes in, and the frame gets sealed to the structure at every perimeter joint using AAMA 812-compliant low-expansion foam. The result is a door that doesn’t whistle when the wind picks up off the Intracoastal.

Waterproofing – Water gets through doors at the corners, not the middle. The VLX 100 sill system and the AAMA 2400/2410-installed flashing system direct water down and out. The low-expansion foam keeps the seal from bowing the frame, which is the silent killer on poorly installed aluminum doors in coastal climates.

Wind Resistance – West Palm Beach sits in a high-velocity hurricane zone. The VLX 100 is wind-load rated for local code requirements, and when paired with laminated impact glass, it meets the impact-resistance requirements for openings in wind-borne debris regions. That means no shutters, no panels, no running home before a storm to board up the front door.

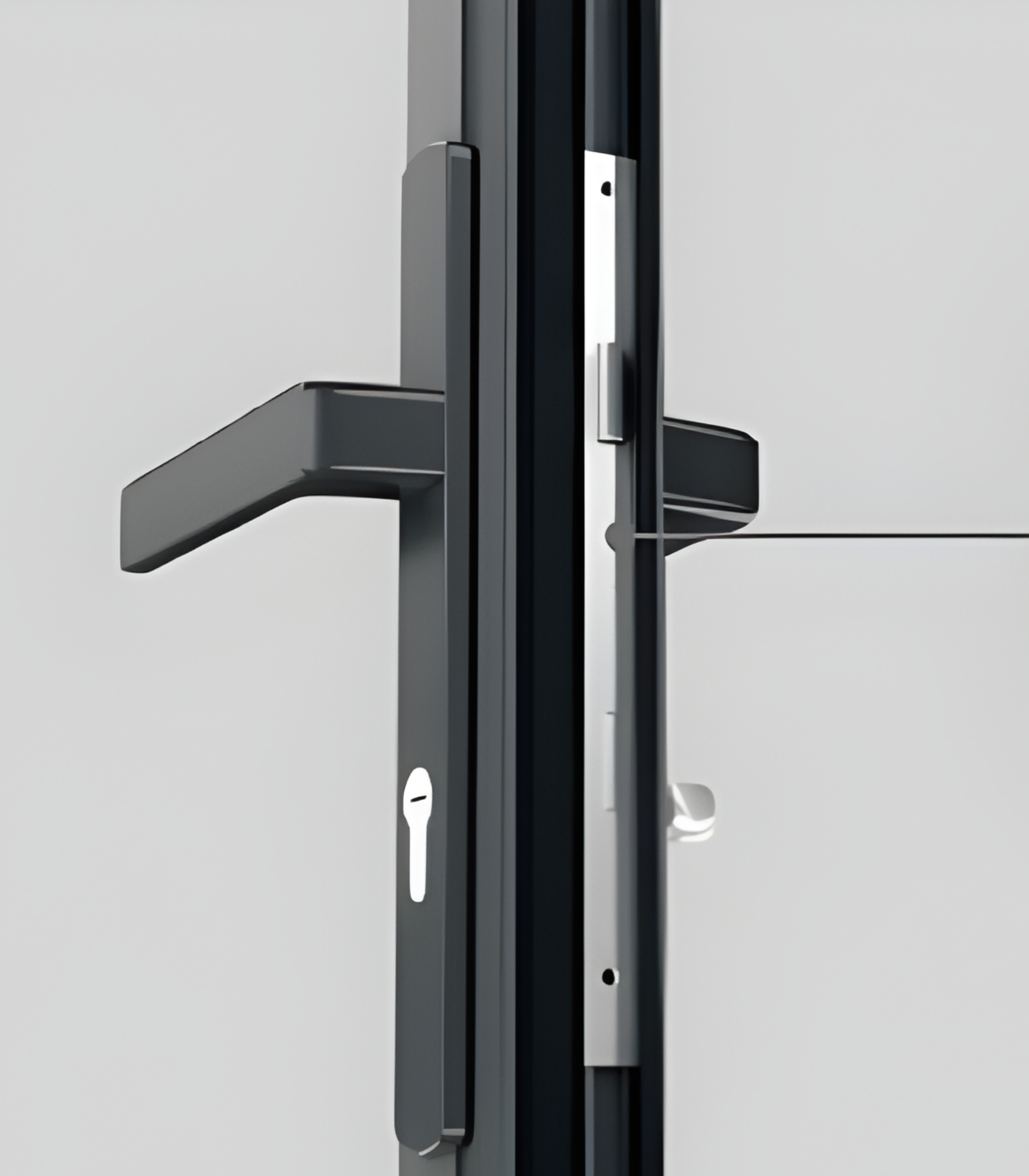

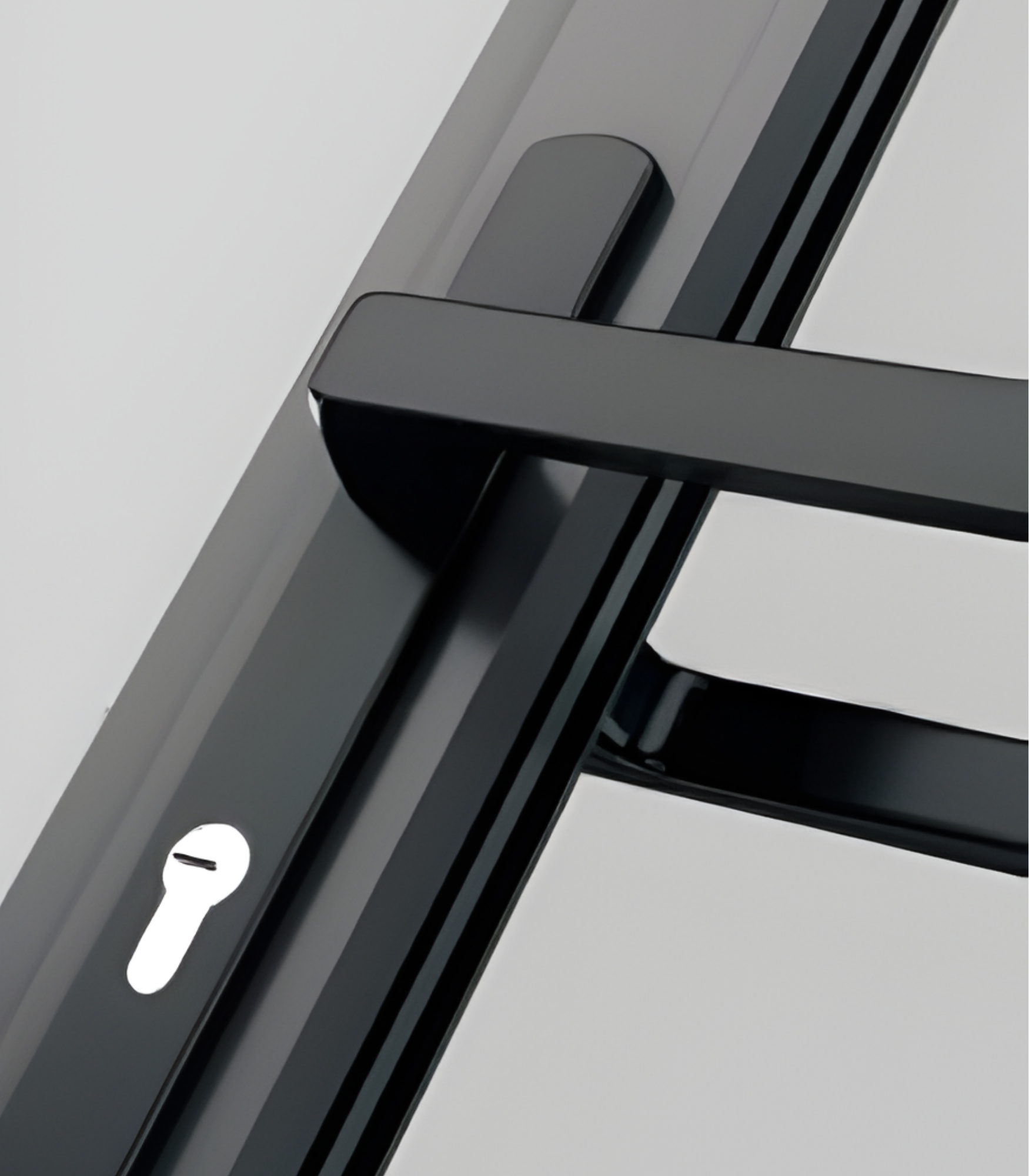

Security & Hardware – The three-point locking system engages at the latch and at two additional points along the jamb. Forced-entry resistance is significantly better than a single deadbolt because the door can’t be pried at a single point. The lock hardware is recessed into the frame, not surface-mounted, so it’s also cleaner visually.

Color & Glass Options

Six standard finishes. Premium Black is the most popular in West Palm Beach right now, especially on white stucco homes in Flamingo Park and Grandview Heights where the contrast reads as intentional. Pure White disappears into lighter facades. Anodized Silver and Bronze feel right on mid-century homes, matching the original aluminum window frames. Champagne is warmer than silver and less common, so it tends to show up on higher-end builds. Teak Wood is a powder coat with a wood-grain texture, giving you the look of wood without the maintenance on a south-facing entry that gets hammered by sun.

Glass selection depends on what the door faces. Clear Low-E is the default for most entries, balancing light transmission with heat rejection. Frosted and Obscure are best for doors that open directly into living spaces where privacy matters, a bungalow off a shared courtyard, or a side entry. Tempered is safety-rated and required by code in most door applications. Laminated is the impact-rated option, and it’s the one we recommend for any door that isn’t protected by a porch or overhang. The retractable screen is a natural fit for West Palm Beach evenings when you want the breeze without the no-see-ums.

Installation by Lightwell Windows West Palm Beach in West Palm Beach

Installation is where most door failures start. Not in the product. In the opening. Aluminum doors are unforgiving. If the rough opening is out of square, the door binds. If the perimeter seal isn’t continuous, it leaks. If the frame is set out of level, the multi-point lock won’t engage cleanly, and over time the hardware wears out under constant pressure. This is not a product you want installed by a crew that does “a little bit of everything.”

Our process starts with a pre-install inspection. We pull the existing door and check the rough opening for rot, termite damage, and square. In West Palm Beach’s older neighborhoods, we regularly find openings that have shifted half an inch over sixty years. We correct the opening before the new frame goes in, not after, which is what separates a proper install from a caulk-and-pray job.

The frame is set level, plumb, and square. Then we seal every perimeter joint with AAMA 812-compliant low-expansion foam, which fills gaps without distorting the frame. Exterior flashing follows AAMA 2400/2410 guidelines, which is the recognized standard for window and door installation. After the door is hung and the hardware is dialed in, we run a water test around the sill and jambs. If water gets in during our test, it gets in during a storm. We fix it before we leave.

One more thing: every product warranty is conditioned on proper installation. If a door is installed wrong, the manufacturer warranty doesn’t mean much. When Lightwell Windows West Palm Beach installs the VLX 100 as an authorized ViewLux partner, the installation is warranty-safe. That’s a real, enforceable distinction, not marketing language.

Frequently Asked Questions – VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door? Standard finishes in Premium Black or Pure White with clear Low-E glass typically ship in 2 to 4 weeks. Custom finishes like Teak Wood or Champagne, and laminated impact glass, add 3 to 6 weeks depending on the production schedule. We confirm the current lead time at your estimate, in writing, before you commit. Call (728) 203-1160 for today’s lead times.

Does the VLX 100 qualify for energy tax credits? Possibly, if you install Low-E glass with qualifying U-factor and solar heat gain ratings. The NFRC rating for your specific glass package determines eligibility under current IRS rules. We supply the NFRC documentation you need to file the credit, and we recommend confirming eligibility with your tax preparer. Call (728) 203-1160 and we’ll pull the ratings for your glass package.

What warranty comes with the Swing / Entry Door? ViewLux provides a manufacturer warranty on the aluminum frame, finish, and hardware when installed by an authorized partner. The installation workmanship is covered separately by Lightwell Windows West Palm Beach. The exact warranty periods depend on finish type and glass package, and we spell them out on your quote. Call (728) 203-1160 for the warranty terms that apply to your door.

Can I customize the size? The VLX 100 is built to your rough opening, up to a 48-inch maximum panel width. Custom widths and heights are manufactured to order, which is standard for this product, not an upgrade. That means you’re not paying for a “custom size” line item. If your opening exceeds 48 inches, we’ll talk through options like the VLX hinged pair or a fixed sidelite configuration. Call (728) 203-1160 to schedule a measurement.

How do I maintain aluminum frames? Rinse the frame and track with fresh water every few months, more often if you live within a mile of the Intracoastal or the ocean where salt spray accumulates. Use a mild detergent and a soft cloth for stubborn grime. Avoid abrasive cleaners and pressure washers, which can damage the powder-coat finish and void the finish warranty. Inspect the weatherstripping annually and replace it when it flattens. Call (728) 203-1160 if you want us to take a look during a service visit.

Get a Quote – VLX 100 Swing / Entry Door in West Palm Beach

The fastest way to get a real number is a free on-site measurement. We come to your home in West Palm Beach, check the opening, talk through glass and finish options, and give you a written line-item quote. No change orders, no surprises. Call (728) 203-1160 to schedule your free estimate with Lightwell Windows West Palm Beach.

Written by the team at Lightwell Windows West Palm Beach, serving West Palm Beach, FL and surrounding communities.
