VLX 500 Sliding Window

VLX 500 Sliding Window in West Palm Beach, FL | Lightwell Windows West Palm Beach

The VLX 500 Sliding Window is a high-performance aluminum sliding system built for homeowners in West Palm Beach who want clean sightlines, smooth operation, and a frame that won’t sag or bind after a few humid summers. We’re Lightwell Windows West Palm Beach, an authorized ViewLux installation partner, and we’ve installed this series in homes from El Cid to Ibis Golf & Country Club. What sets the VLX 500 apart is the engineering: a slim 1.97-inch profile that maximizes glass area, paired with track hardware that glides without wrestling. If you’re planning a window upgrade anywhere in West Palm Beach, call us at (728) 203-1160 for a free measurement and quote.

Call (728) 203-1160

Product Overview – VLX 500 Sliding Window

The VLX 500 is a high-performance aluminum sliding system with a slim profile and an effortless glide that most people only associate with much pricier European lines. It’s available in 2-track and 3-track configurations, which gives you flexibility whether you’re replacing a single slider in a 1960s ranch in Southland Park or doing a full wall of glass in a new build near the Intracoastal. The 0.079-inch wall thickness is thicker than what you’ll find on economy aluminum frames sold at big-box stores around West Palm Beach, and that extra material translates directly into less flex, tighter seals, and a window that still operates cleanly after a decade of salt air and afternoon thunderstorms. Buyers choose this series for three reasons: the narrow profile that reads more like a glass wall than a window frame, the engineered track system that doesn’t require shoulder strength to open, and the range of finish and glass options that lets you match nearly any architectural style. Whether your home is a mid-century modern in Sunshine Park or a Mediterranean-style villa in Prospect Park, the VLX 500 slides into the design rather than fighting it. We recommend this series most often to clients who’ve lived with old, corroded aluminum sliders and are done fighting them.

Technical Specifications

Here’s what you’re getting with the VLX 500 Sliding Window, measured and verified before it leaves the ViewLux factory:

• Wall thickness: 0.079 in. Heavy enough for structural integrity, light enough to keep the profile sleek.
• Profile width: 1.97 in. Among the slimmest in its class, which means more glass and less frame.
• Track configurations: 2-Track (one operable, one fixed) and 3-Track (three panels, larger openings).
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated. Any can be combined in insulated glass units.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable Screen (disappears into the frame) or Sliding Screen (standard track-mounted).
• Performance compliance: NFRC-rated thermal performance, AAMA 2400/2410 installation standard, AAMA 812 perimeter sealant.
• Hardware: Stainless roller assemblies with sealed bearings, built for repeated operation in coastal conditions like West Palm Beach.

Performance Features

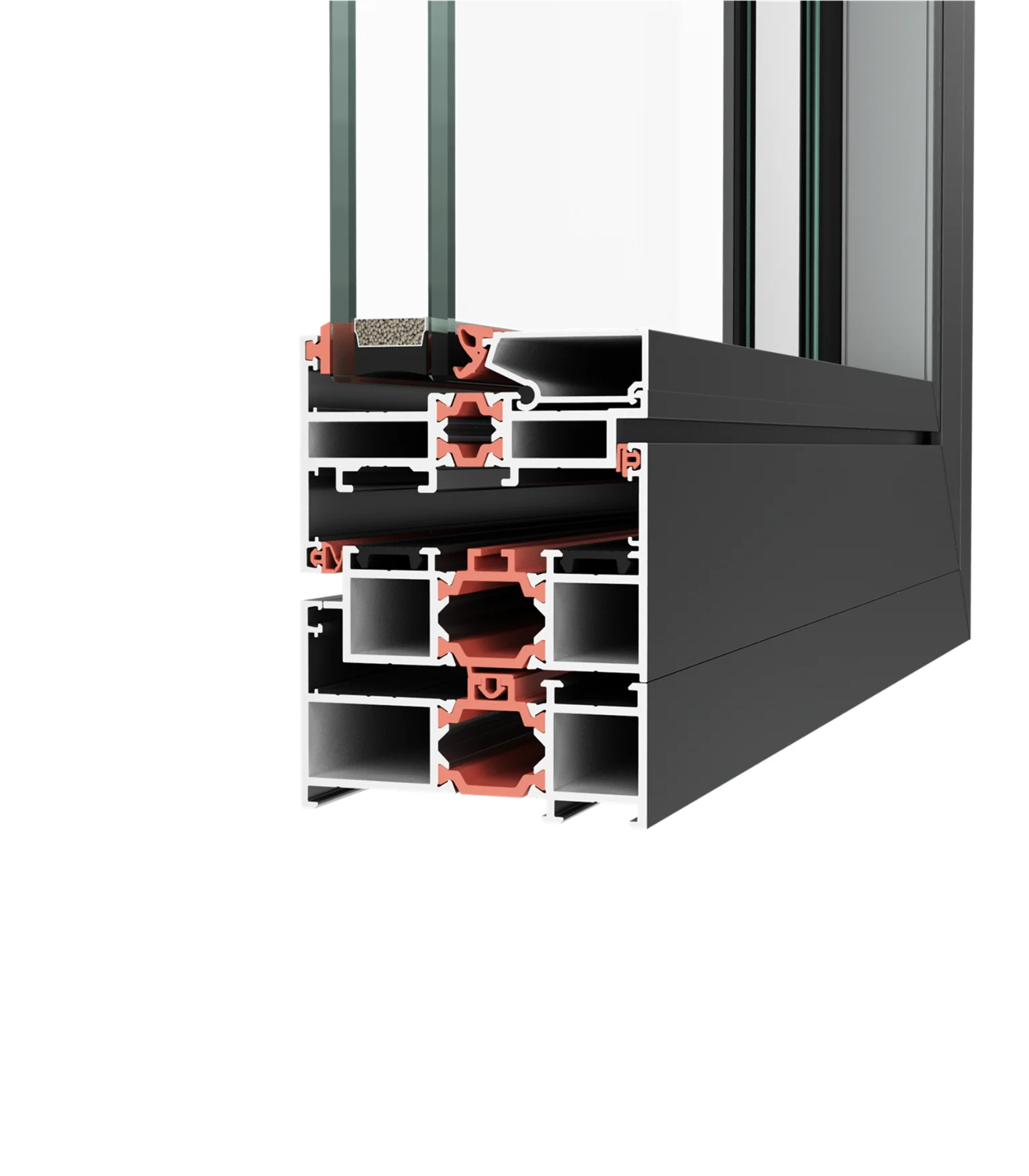

Thermal Efficiency – The VLX 500 uses a thermal break built into the aluminum profile, which interrupts heat transfer between the exterior and interior frame. In West Palm Beach, where July sun bakes western-facing walls, that break keeps your air conditioning from leaking through the frame. NFRC-rated performance means the numbers are third-party verified, not manufacturer claims. Pair it with Low-E glass and you’ll notice the difference on your FPL bill.

Acoustic Performance – If you live near Okeechobee Boulevard, Dixie Highway, or anywhere under the PBIA flight path, sound control matters. The VLX 500’s multi-chamber frame design and tight glass seating reduce exterior noise transmission. You can step it up further with laminated glass, which adds a sound-dampening interlayer. We’ve had clients in Flamingo Park comment on the quiet the first night after install.

Airtightness, Weather Seal – West Palm Beach gets roughly 62 inches of rain a year, and the wind that drives it is no joke. The VLX 500’s compression gaskets and interlocking meeting rails keep air and driven rain on the outside where they belong. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills gaps traditional caulk misses and stays flexible through the heat-cool cycle our climate throws at it.

Waterproofing – Waterproofing starts at the factory with integrated weep channels that drain any moisture that gets past the primary seal, and it ends with correct installation. We slope the sill per AAMA 2400/2410 standards and verify drainage before we call the job done. A window that tests watertight on day one still leaks by year three if the sill pan isn’t installed right. Ours is.

Wind Resistance – The VLX 500 is wind-load rated for the coastal requirements that apply in West Palm Beach and Palm Beach County. Hurricane season runs June through November, and while no sliding window is a substitute for shutters or impact-rated openings, the frame is engineered to handle code-level design pressures. If you need full missile-impact protection, we can spec the VLX 500 with impact-resistant laminated glass.

Security, Hardware – The stainless roller assemblies and multi-point locking hardware on the VLX 500 are a step above the pot-metal locks found on standard sliders. The lock engages at the meeting rail and resists prying. It’s not a security system, but it’s a meaningful deterrent and it holds the window firmly against the weatherstripping when locked, which also helps the seals perform.

Color & Glass Options

The VLX 500 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Around West Palm Beach, the modern and contemporary homes in communities like SoSo and Grandview Heights tend toward Premium Black or Anodized Silver, which pair well with clean stucco lines and white oak interiors. Bronze and Champagne are the quiet workhorses for traditional Florida architecture, including the barrel-tile and barrel-vault homes in Historic Northwood. Teak Wood is a powder-coated wood-texture finish that gives you the warmth of wood without the termite and moisture problems real wood frames suffer in South Florida. For glass, Clear is the default, but most of our West Palm Beach clients add Low-E to cut heat gain. Frosted works well for bathrooms and street-facing windows where you want light without the view. Tempered glass meets safety glazing codes for doors and low windows. Laminated glass adds impact resistance and sound deadening, and it’s what we recommend if you’re within a few miles of the coast without hurricane shutters.

Installation by Lightwell Windows West Palm Beach in West Palm Beach

A great window poorly installed is a bad window. The VLX 500 carries a manufacturer warranty that is only valid when installed to spec, and we’ve seen enough failed installs from unqualified crews in West Palm Beach to know what happens when that step is skipped. Here’s how we do it. Our process starts with a pre-install inspection of the opening: we check the rough opening dimensions, the condition of the framing, and whether there’s any hidden moisture damage from the old leaking window. Once we know the opening is sound, we set the window level, plumb, and square. That last part is non-negotiable because a slider that’s even 1/8 inch out of square will bind, drag, or refuse to lock. We then seal every perimeter joint with AAMA 812 low-expansion foam sealant, which expands to fill voids and stays flexible as the building moves through West Palm Beach’s heat and humidity cycles. Flashing and sill pans go in per AAMA 2400/2410, the recognized standard for window installation. Before we trim out and finish, we run a water test to verify the opening drains properly. Then cleanup. Your old window hauled away, the opening swept, no nails in the driveway. We install the VLX 500 as if it were going into our own house, because in a lot of West Palm Beach neighborhoods, we’re practically neighbors. If you want it done right, call (728) 203-1160 and we’ll schedule a free measurement.

Frequently Asked Questions – VLX 500 Sliding Window

Get a Quote – VLX 500 Sliding Window in West Palm Beach

If the VLX 500 sounds like the right window for your home, the next step is simple. Call Lightwell Windows West Palm Beach at (728) 203-1160. We’ll schedule a free on-site measurement anywhere in West Palm Beach, go over glass and finish options for your specific elevation, and give you a written, line-item quote. No pressure, no obligation, just real numbers from an authorized ViewLux installation partner.

Written by the team at Lightwell Windows West Palm Beach, serving West Palm Beach, FL and surrounding Palm Beach County communities. Family-owned, state-licensed, and insured & bonded.
