VLX 100 Pivot Door

VLX 100 Pivot Door in West Palm Beach, FL | Lightwell Windows West Palm Beach

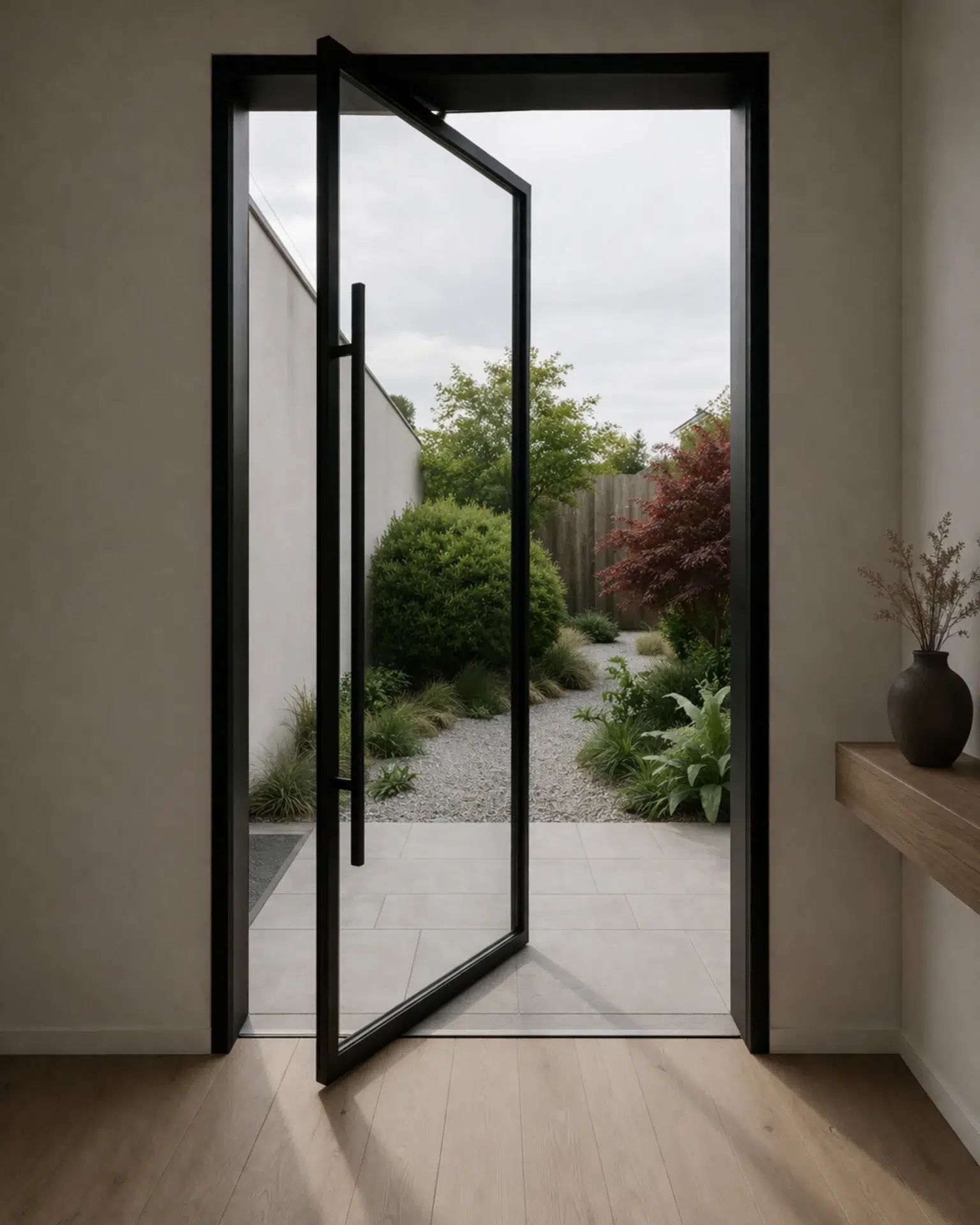

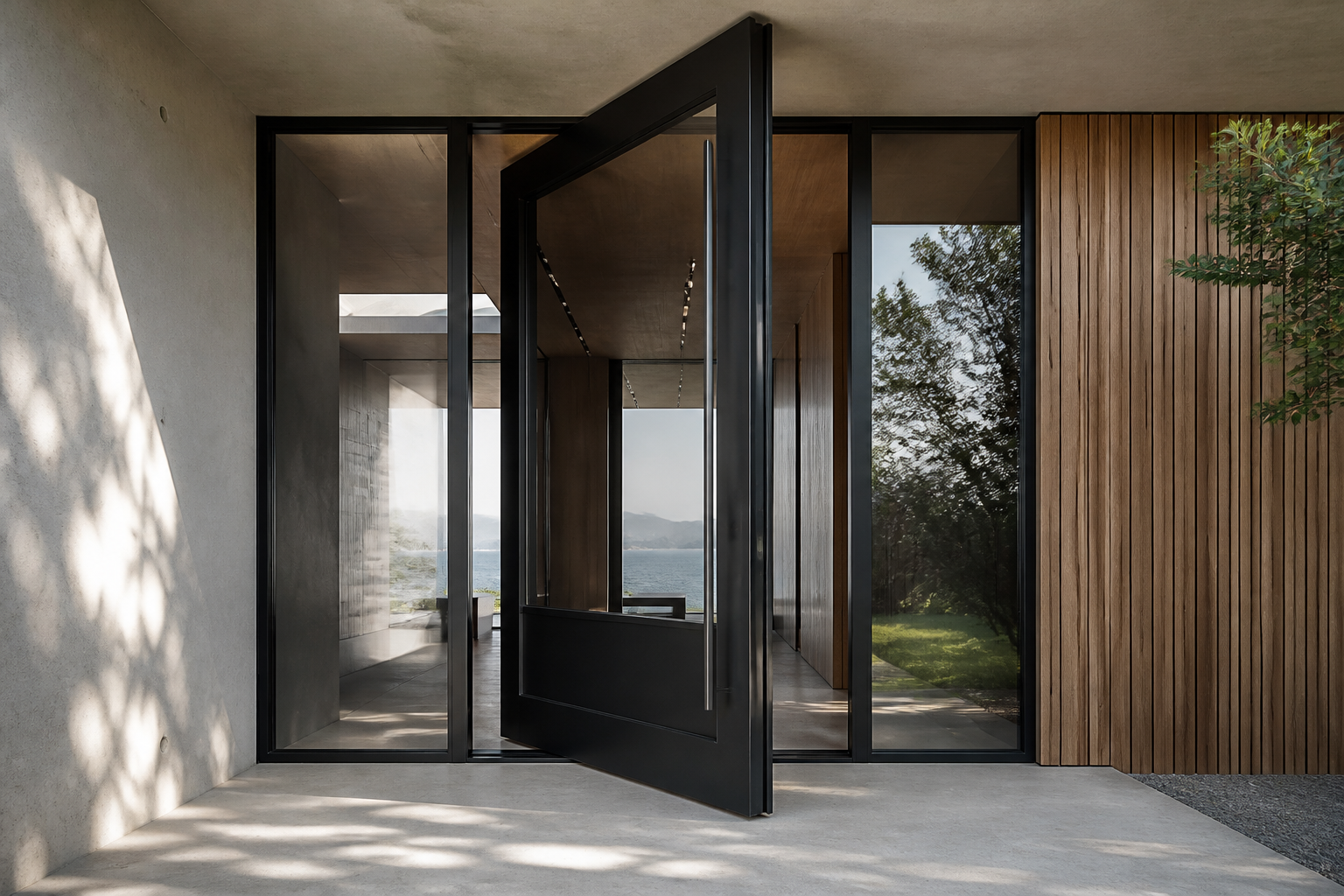

The VLX 100 Pivot Door is a heavy-duty aluminum door system that rotates on a vertical center axis instead of traditional side hinges. It’s built for homeowners and architects in West Palm Beach who want a true architectural statement: oversized glass, clean sightlines, and a door that feels less like an entryway and more like a signature design element. Lightwell Windows West Palm Beach is an authorized installation partner for ViewLux, the manufacturer of the VLX 100. That means you’re buying through a local team that handles measurement, ordering, delivery, and installation under one roof, right here in West Palm Beach, FL. Call (728) 203-1160 to talk through your project.

Call (728) 203-1160

Product Overview – VLX 100 Pivot Door

The VLX 100 Pivot Door belongs to a category of entry systems that has moved from high-end commercial architecture into luxury residential and condominium projects across South Florida. The defining characteristic is the pivot mechanism. Instead of hinges mounted to one side jamb, the door rotates on a vertical center axis, which shifts the visual weight of the door and allows for much larger panels than a traditional hinged door can support. That’s the reason you’ll see these doors in West Palm Beach homes where the front entry is designed to be a focal point, not just a threshold.

ViewLux engineers the VLX 100 as a heavy-duty aluminum system. The frame carries a 0.098″ wall thickness and a 2.56″ profile width, which gives the structure the rigidity to support spans up to 60 inches wide and 120 inches tall. That’s a full ten-foot door height, which is not something you can achieve with a standard residential door. In West Palm Beach, where contemporary coastal architecture and indoor-outdoor living drive a lot of design decisions, a door this size changes the relationship between the interior and the entry courtyard or front terrace.

Buyers choose the VLX 100 for three reasons. First, the oversized glass panel fills the entry with natural light. Second, the pivot action feels substantial; it swings with a weight and balance that standard patio doors simply don’t have. Third, the aluminum frame holds up to the West Palm Beach climate: humidity, salt air, heavy rain, and UV exposure. Lightwell Windows West Palm Beach has installed this system in both new construction and entry replacement projects across the city, and the feedback is consistent: it immediately becomes the feature people remember about the house.

Technical Specifications

VLX 100 Pivot Door – Spec Sheet (as installed by Lightwell Windows West Palm Beach)

• Frame material: Heavy-duty extruded aluminum
• Wall thickness: 0.098 inches
• Profile width: 2.56 inches
• Maximum panel size: 60 inches wide × 120 inches tall
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Glazing: Single panel, oversized, insulated glass configurations available
• Installation standard: AAMA 2400/2410
• Perimeter seal: AAMA 812-compliant low-expansion foam

These are the factory numbers, but what they mean in practice is that this door fits openings that would require a custom millwork solution from any other door manufacturer. The 60 × 120 maximum span covers most luxury entry designs in West Palm Beach without having to split the opening into double doors or add a transom. If your rough opening is close to those dimensions, we can tell you over the phone whether the VLX 100 will work as-is or whether you’ll need framing adjustments. Call (728) 203-1160 and we’ll walk you through it.

Performance Features

Thermal Efficiency

The VLX 100 uses thermal break technology in the aluminum frame, which separates the interior and exterior metal surfaces to reduce heat transfer. In West Palm Beach, that matters year-round, but especially from May through October when every degree of heat gain adds to your cooling load. The system is NFRC-rated, which means the energy performance numbers come from an independent testing and certification program rather than a manufacturer’s estimate.

Acoustic Performance

A door this large will always transmit more sound than a solid wall, but the VLX 100 is engineered to keep that to a minimum. The frame tolerances, insulation between the glass panes, and perimeter sealing all contribute to sound control. If your West Palm Beach home faces a busy street, is near the airport flight path, or sits in a dense neighborhood like Flamingo Park or El Cid, laminated glass upgrades can make a significant difference in interior quiet.

Airtightness & Weather Seal

Every VLX 100 installation performed by Lightwell Windows West Palm Beach includes an AAMA 812-compliant low-expansion foam sealant on all perimeter joints. That detail prevents air leaks at the frame-to-structure connection, which is the most common failure point on large door systems. The result is a door that doesn’t whistle in a storm and doesn’t let conditioned air escape.

Waterproofing

West Palm Beach gets roughly 62 inches of rain per year, much of it in heavy afternoon downpours. The VLX 100’s sill design and multi-point weatherstripping direct water away from the interior, and our installation team performs a water test after every pivot door install to confirm the seal is holding. If water is going to find a way in, we’d rather find it before you do.

Wind Resistance

The VLX 100 is wind-load rated for the requirements of the West Palm Beach building envelope. South Florida is in the high-velocity hurricane zone, and a door this large must be structurally capable of handling wind pressures that smaller doors never experience. The rigid aluminum frame and impact-rated laminated glass option (when specified) address that requirement directly.

Security & Hardware

The pivot mechanism anchors into the floor and header, which makes the door difficult to force. Multi-point locking hardware secures the panel at multiple positions along the frame rather than a single deadbolt point. Combined with laminated glass, the VLX 100 meets the security expectations of high-end West Palm Beach properties without visible, bulky hardware that would compromise the design.

Color & Glass Options

The VLX 100 comes in six finish options, and the finish choice has a significant impact on how the door reads from the street. Premium Black is the most common choice for modern and contemporary West Palm Beach homes; it creates a crisp contrast against white stucco and pairs well with black window frames. Pure White works well on coastal or Mediterranean-style homes where a bright, clean entry is desired. Anodized Silver gives a subtle, brushed-metal look that sits comfortably with mid-century and minimalist architecture. Bronze and Champagne are warmer, richer finishes that suit homes with wood accents or terracotta tones. Teak Wood is a textured woodgrain finish applied to the aluminum, offering the look of timber without the maintenance of a real wood door in the Florida humidity.

Glass selection depends on privacy, light, energy performance, and code requirements. Clear glass maximizes light. Frosted and Obscure glass preserve light while limiting sightlines into the home, a popular choice for West Palm Beach properties close to the street or neighbors. Low-E coatings reduce heat gain and UV exposure. Tempered glass is safety glass that shatters into small pieces rather than large shards. Laminated glass is the one to specify for impact resistance and storm protection; it holds together when struck and helps meet wind-borne debris requirements in the West Palm Beach high-velocity hurricane zone.

Installation by Lightwell Windows West Palm Beach in West Palm Beach

A pivot door is only as good as its installation. The VLX 100 is a precision-manufactured aluminum system, and the difference between a door that swings beautifully for twenty years and one that binds, leaks, or sags after two seasons comes down to the skill of the installation crew. Lightwell Windows West Palm Beach has handled pivot door installations throughout West Palm Beach, FL, and we follow a defined process on every project.

We start with a pre-install inspection of the rough opening. Pivot doors impose unique loads on the header and floor structure, so we verify the opening is square, level, and structurally sound before we order or install anything. The pivot point must land exactly where the engineering specifies; a fraction of an inch off-center translates to a door that drags or drifts. We set the frame level, plumb, and square, then secure it with the correct anchoring system for the substrate, whether that’s concrete block, poured concrete, or steel reinforcement.

Every perimeter joint gets AAMA 812-compliant low-expansion foam sealant. This prevents the air and water intrusion that plague poorly sealed large openings. We install to the AAMA 2400/2410 standard, which governs the installation of windows and doors in exterior wall systems. After the door is hung and adjusted, we run a water test on the threshold and lower frame to confirm the drainage path is working. The last step is a full cleanup and a walkthrough of the door’s operation with you.

There’s a reason we’re direct about installation standards. If a ViewLux product is installed incorrectly, the manufacturer warranty can be voided. That’s the risk with a generalist crew or a handyman install. An authorized partner like Lightwell Windows West Palm Beach installs to the manufacturer’s specifications, which keeps the warranty intact and the door performing the way it was engineered to. West Palm Beach also has specific building permit requirements for entry door replacement, particularly when the opening size changes or the door is part of a new build. We coordinate with local permitting and provide documentation as needed.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in West Palm Beach

The VLX 100 Pivot Door is a major upgrade to the character of your home, and pricing depends on size, glass, and finish choices. Lightwell Windows West Palm Beach offers free on-site measurements for properties in West Palm Beach and the surrounding area. Call (728) 203-1160 to schedule yours, or to ask any questions about the VLX 100. We’ll provide a written line-item quote with fixed pricing before any work begins.

Written by the team at Lightwell Windows West Palm Beach, serving West Palm Beach, FL as an authorized ViewLux installation partner.
