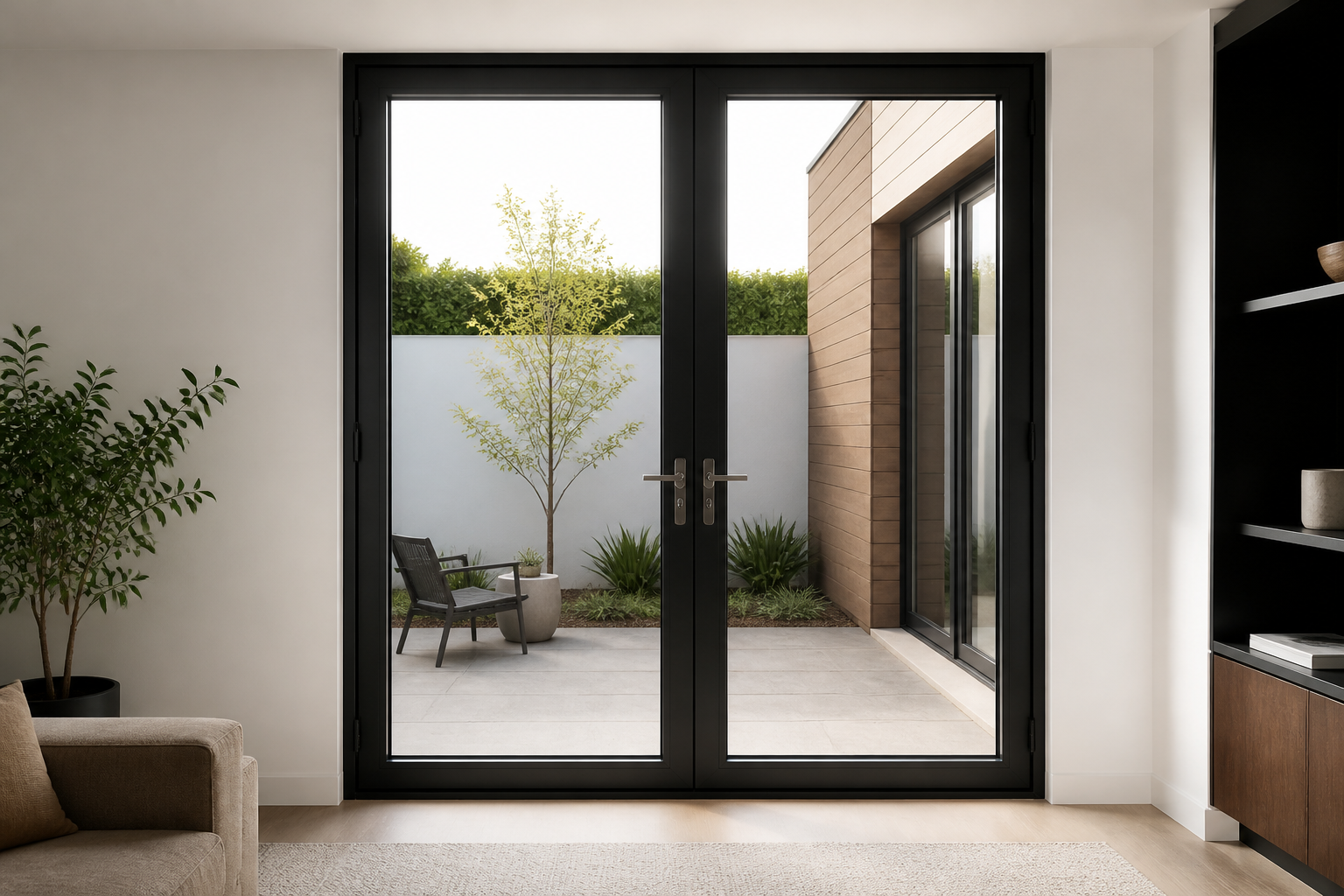

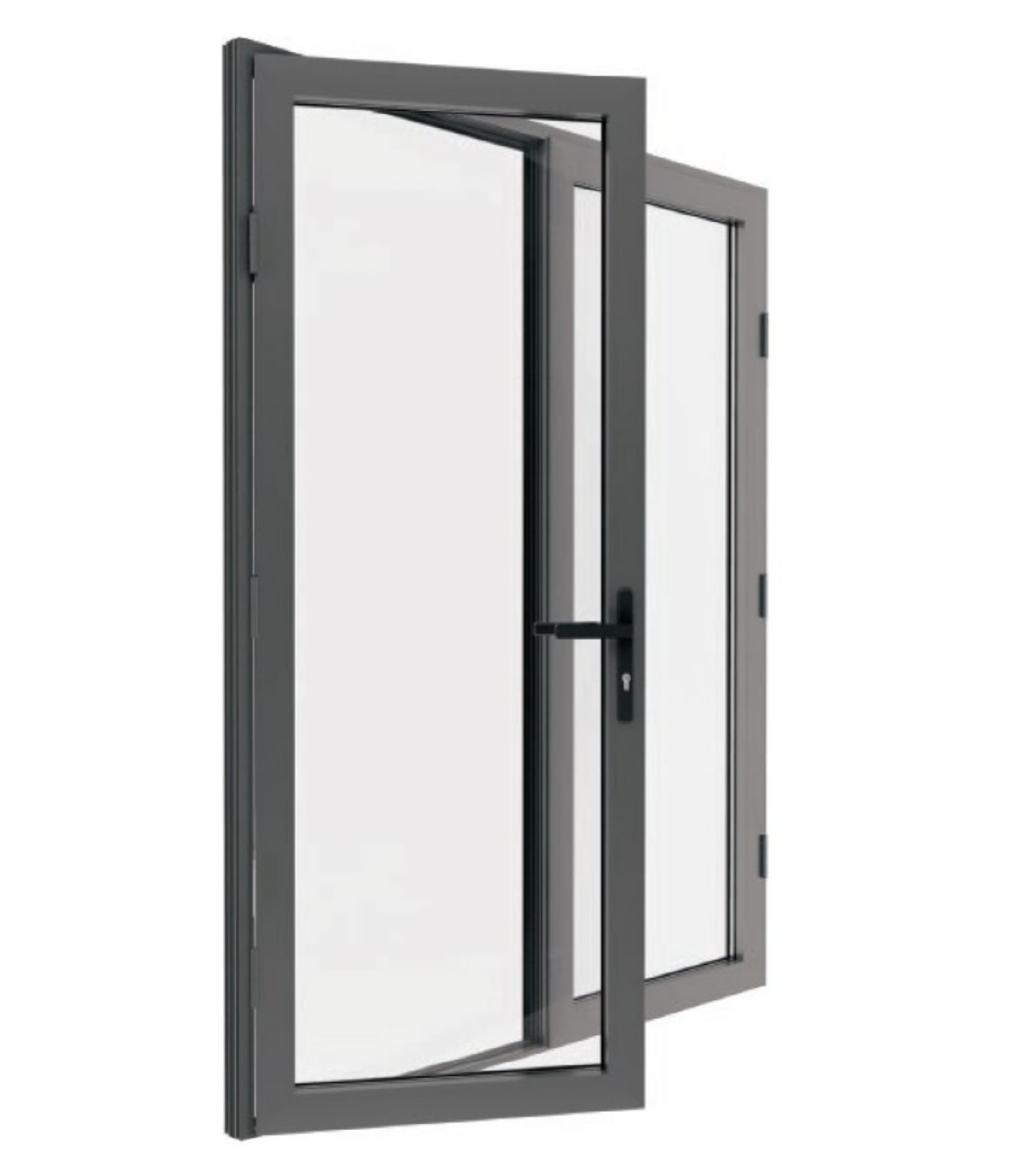

VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in West Palm Beach, FL | Lightwell Windows West Palm Beach

The VLX 100 Double Swing / French Door is a paired aluminum door system built for homeowners in West Palm Beach who want a wide, open transition between indoor living space and a patio, pool deck, or garden. Both panels swing, which means you get the full opening when you want it and a classic centered look when closed. Lightwell Windows West Palm Beach is an authorized installation partner for ViewLux, the manufacturer of this door. That matters because installation quality determines how a French door performs over a decade of Florida humidity, afternoon storms, and salt air. Call (728) 203-1160 to talk through sizing, finish options, and a free on-site measurement.

Call (728) 203-1160

Product Overview – VLX 100 Double Swing / French Door

Paired aluminum French doors carry a certain architectural weight. They anchor a room, frame the view, and tell guests exactly where the party moves when it spills outside. The VLX 100 does this with symmetrical sightlines: the two panels match proportionally, so the door reads as one composed opening rather than two mismatched pieces of glass fighting for attention.

The frame profile runs 2.56 inches wide. That’s a deliberately slim line for an aluminum door, which keeps sightlines clean without giving up the structural rigidity aluminum is known for. Wall thickness sits at 0.098 inches, a spec that translates to a door that won’t rack, sag, or bind after a few West Palm Beach summers. The flush threshold is the detail buyers don’t know to ask about until they’ve tripped over someone else’s raised door sill. Here, the sill sits nearly level with the floor, so a wheeled cooler, a barefoot kid, or a grandparent with a walker moves through without a toe-stub or a bump.

The multi-point lock hardware is standard. Instead of a single latch catching at one point, the locking mechanism engages at multiple points along the door height, pulling both panels tight against the weatherstripping. That compression is what keeps conditioned air inside and afternoon rain outside.

For a West Palm Beach home, this door belongs on a rear elevation facing a screened lanai, a pool, or a canal view. It’s the product buyers land on when they’ve outgrown a single French door and want something that makes the wall disappear. Lightwell Windows West Palm Beach has installed this series across the city, and we can tell you exactly how it performs on a west-facing wall in August or a north-facing opening that catches every sea breeze.

Technical Specifications

• Frame profile width: 2.56 inches
• Wall thickness: 0.098 inches (extruded aluminum)
• Maximum span: Up to 96 inches wide, depending on glass package and wind-load requirements
• Configuration: Double swing, both panels operable
• Threshold: Flush (low-profile) sill
• Locking: Multi-point lock hardware, standard
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen or None
• Performance standards: NFRC-rated thermal performance, AAMA 2400/2410 installation compliance, AAMA 812 perimeter sealant

Frosted and obscure glass are two different animals. Frosted diffuses light with a soft, even haze. Obscure glass uses a pattern or texture that blocks visibility more completely. We’ll walk you through the difference in person, because the right choice depends on whether your door faces a neighbor’s window or a private backyard.

Performance Features

Thermal Efficiency

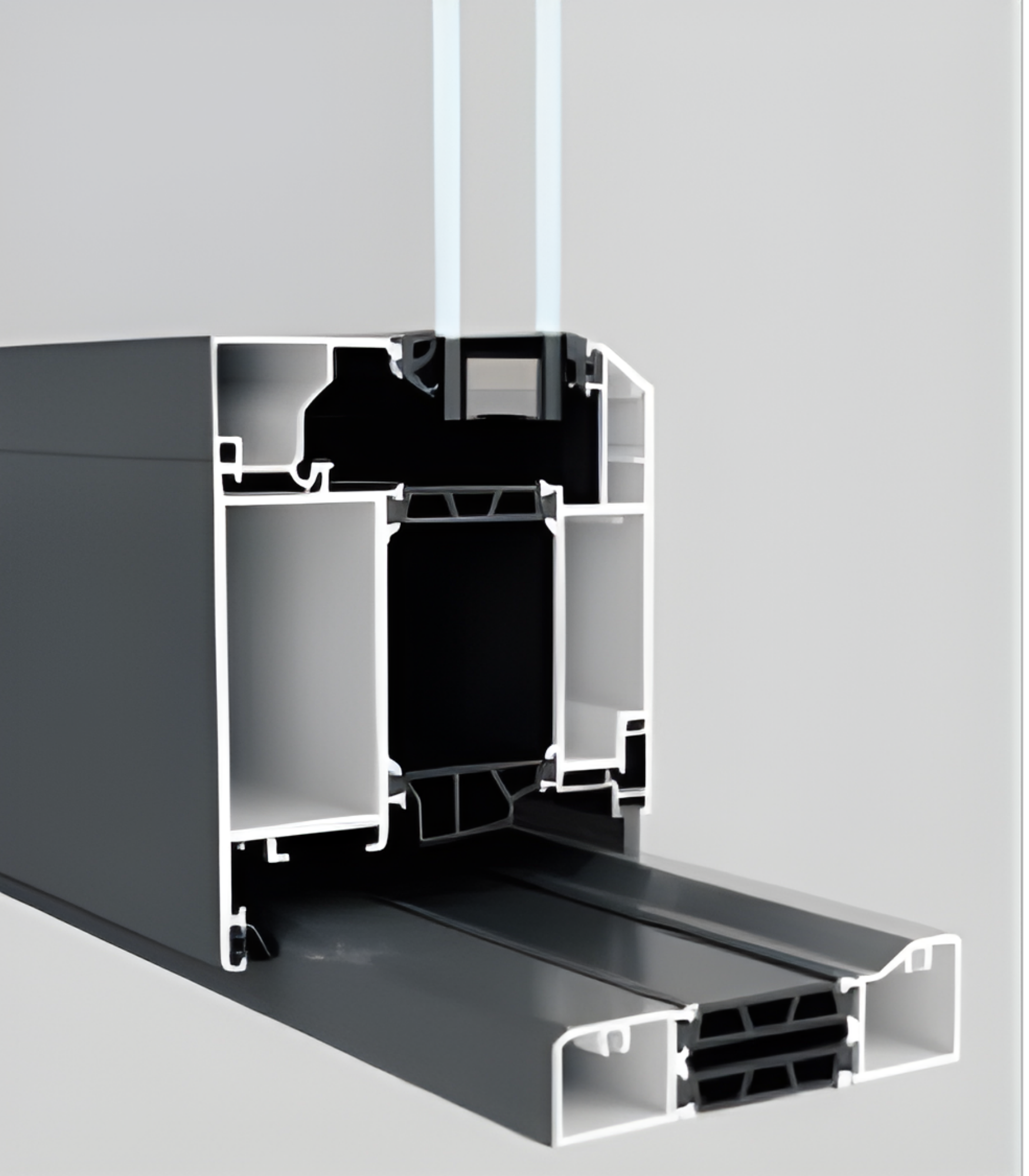

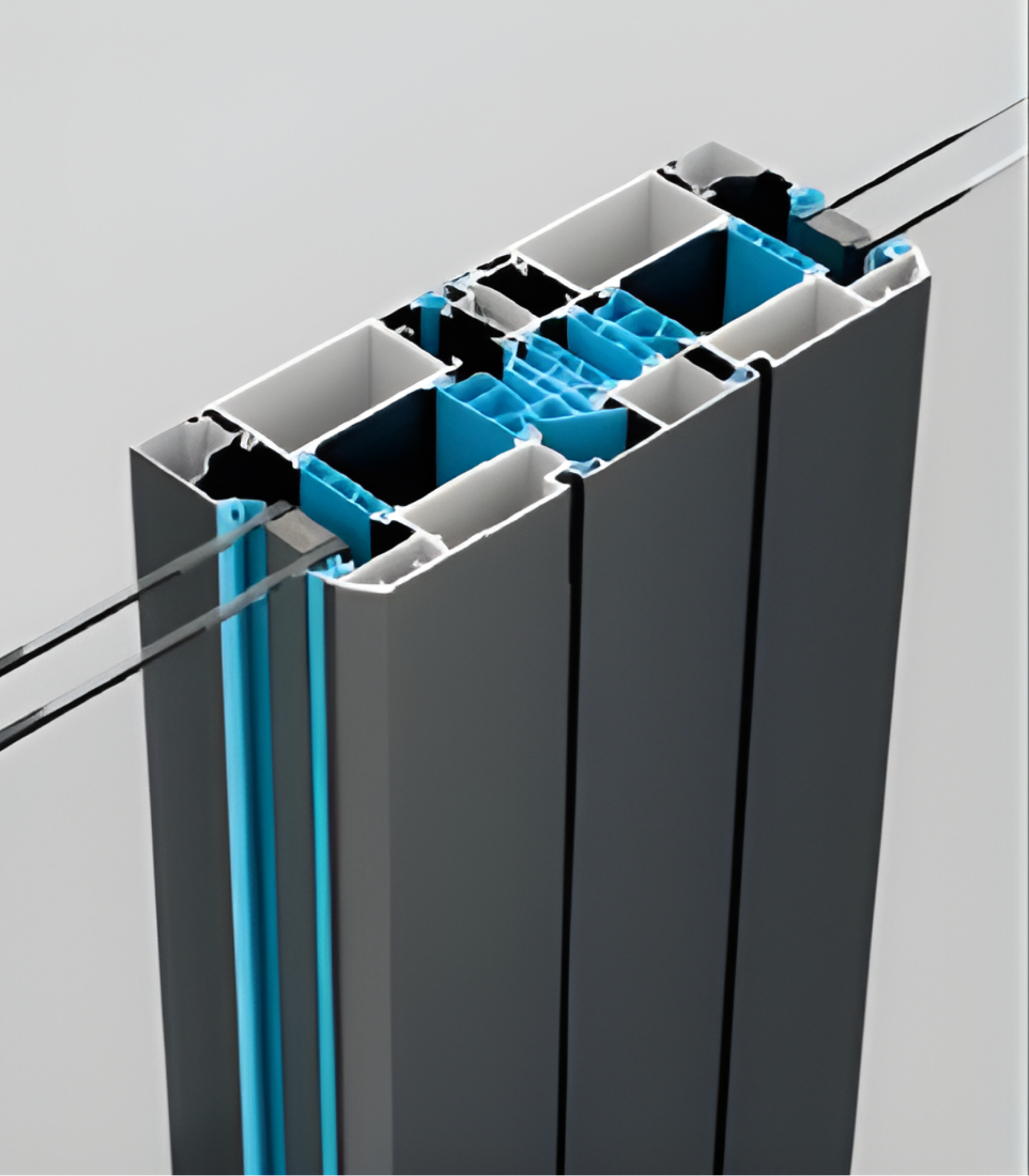

The VLX 100 uses thermal break technology, which separates the interior and exterior aluminum faces with a non-conductive barrier. Aluminum conducts heat fast; the break slows that down. The result is an NFRC-rated frame that doesn’t cook your living room from the outside in. Pair it with Low-E laminated glass and you’ve got a genuinely efficient opening for a South Florida home.

Acoustic Performance
Sound control ratings on this door matter more in West Palm Beach than buyers expect. Between landscapers, motorcycles on Okeechobee Boulevard, and the general hum of a growing city, a well-sealed door with laminated glass cuts a real amount of noise. The multi-point lock pulls panels tight against the seals, which is where most sound leaks originate on cheaper doors.

Airtightness & Weather Seal
Air leakage is the silent budget killer in Florida. A door that leaks lets humid outdoor air into your conditioned envelope, and your AC works overtime to wring it out. The VLX 100’s compression seals and multi-point locking create a continuous perimeter contact that keeps air transfer low. That’s the spec that shows up on your FPL bill every month.

Waterproofing
West Palm Beach gets 60-plus inches of rain a year, often delivered sideways during afternoon storms. The VLX 100 is designed with drainage channels that move water out of the frame rather than trapping it. At installation, Lightwell Windows West Palm Beach applies AAMA 812 low-expansion foam sealant to every perimeter joint, which prevents water from finding a path behind the frame and into the wall cavity.

Wind Resistance
Doors in Palm Beach County must be wind-load rated, and the VLX 100 is engineered to handle local requirements. Impact-resistant laminated glass is available as an option, which gives you a door that meets the structural demands of hurricane season without adding an external shutter system. Ask us about your specific wind zone; requirements vary by location even within the city.

Security & Hardware
The multi-point lock system engages at multiple locations along the panel height, not just at the handle. This spreads force across the door rather than concentrating it at one latch point. For a door that opens onto a dark backyard or a canal lot, that’s peace of mind. The hardware itself is engineered for daily use, which matters on a door your family will open and close fifty times a day.

Color & Glass Options

Six finish options give you room to match the door to the house, not the other way around. Pure White and Anodized Silver read clean and coastal, which suits the mid-century and Key West-style homes scattered through neighborhoods like Flamingo Park and El Cid. Premium Black is the current default for modern builds and renovations in SoSo and South of Southern, where contrast against white stucco is the dominant look. Bronze and Champagne lean warmer and work well with beige or sand-toned exteriors common in gated communities out west. Teak Wood is a textured wood-grain finish that gives you the look of wood without the maintenance of it, a practical choice for waterfront homes in West Palm Beach where salt air eats wood frames in a decade.

On glass, Clear is the default, but it’s rarely the right default for a rear door in Florida. Low-E belongs on any opening that gets direct sun. Tempered is safety glass, and it’s already required in most door applications by code. Laminated is the impact-rated option, built with a PVB interlayer that holds glass together if it ever breaks. Frosted gives you light without sightlines; Obscure gives you privacy with more texture. For a pool bath door or a master suite opening, frosted is the most popular choice among our West Palm Beach customers.

Installation by Lightwell Windows West Palm Beach in West Palm Beach

An aluminum French door is only as good as the opening it sits in. We’ve pulled out plenty of doors in West Palm Beach that came out of the factory perfectly square and went into a wall that wasn’t. That’s where the problems start: binding panels, gaps at the threshold, water chasing the path of least resistance into the framing.

Our installation process starts before the old door comes out. We inspect the rough opening, check the floor for level, and identify any water damage or rot in the surrounding framing. In West Palm Beach, where humidity keeps wood damp for months at a time, this step catches problems that would otherwise hide behind a new door until they became expensive ones.

We set the VLX 100 level, plumb, and square. That sounds obvious, but it’s the difference between a door that swings closed with one finger and a door that you have to fight. We shim and anchor the frame properly, then seal every perimeter joint with AAMA 812 low-expansion foam sealant. That foam fills voids without warping the frame, and it creates a continuous air and water barrier around the opening. The entire installation follows AAMA 2400/2410 standards, which is the industry benchmark for window and door installation practice.

After the door is set, we run a water test on the sill and perimeter to confirm drainage is working, then clean the glass, adjust the hardware, and walk you through operation and maintenance. The fact worth repeating: improper installation voids the manufacturer’s warranty. A ViewLux door installed by a trunk-slammer is a ViewLux door with no warranty. Ours is installed to spec, documented, and stands behind both the product warranty and our workmanship.

West Palm Beach also has specific wind-load requirements that vary by location. We know the difference between the requirements for a house in Northwood versus a condo on Flagler Drive, and we’ll make sure your door meets the right one before we order it.

Frequently Asked Questions – VLX 100 Double Swing / French Door

Get a Quote – VLX 100 Double Swing / French Door in West Palm Beach

If you’re building, renovating, or replacing a patio door in West Palm Beach, the VLX 100 deserves a look. We’ll bring finish samples and glass options to your home, measure the opening, and give you a line-item quote with no surprises. Call (728) 203-1160 to schedule a free on-site measurement and start the conversation.

Written by the team at Lightwell Windows West Palm Beach, authorized ViewLux installation partner serving West Palm Beach, FL.
